TOP > Products > Fire-resistant cladding materials for the design of general buildings
Fire-resistant cladding materials for the design of general buildings (Click photos to enlarge)
Fire-resistant cladding materials for steel framed buildings
The covering material protects the structural steel (posts, beams, braces, etc.) of steel-framed buildings from the heat of an accidental fire. The covering is an extremely important fire-resistant material, especially for fire/disaster prevention in steel-framed high-rise buildings.
This is the only material that is also beautiful among all fire-resistant cladding materials. The white molded product adds brightness to any space.
The technique using the fire-resistant cladding board ‘TAIKALITE’ has acquired Design No. X307 (at UL263) certification from Underwriters Laboratory in the United States, as well as a variety of fire-resistant structure certifications according to the Building Standards Act of Japan, which is required by Japan’s Fire Services
Act. ‘NEW TAIKALITE’ is lightweight and slim and has acquired fire-resistant structure certifications according to the Building Standards Act of Japan.

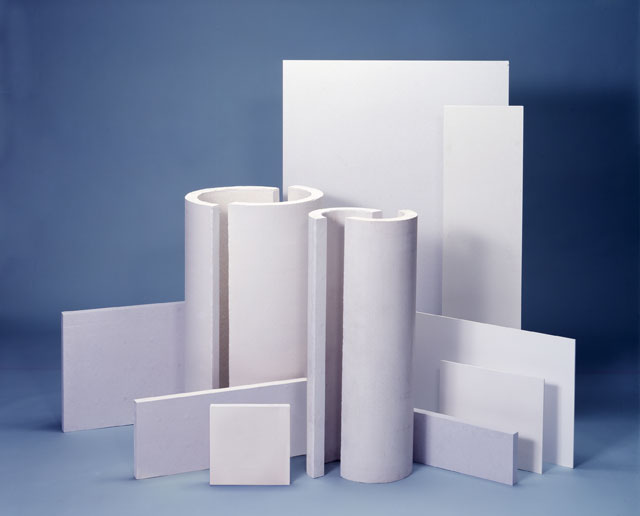

Molded curved surface boards for round columns are also available. The boards have extremely precise circularity and offer a beautiful finish to such columns.

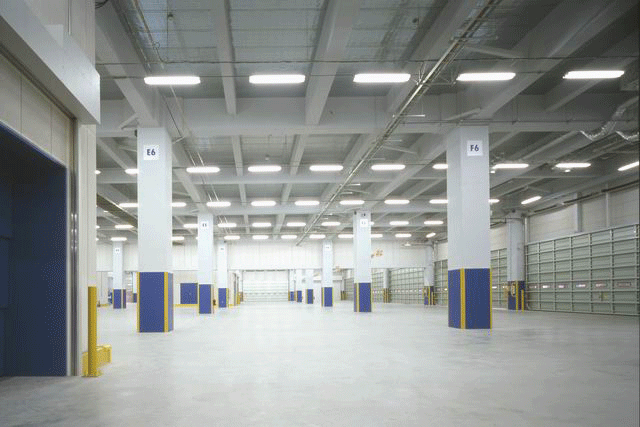

Bright warehouse

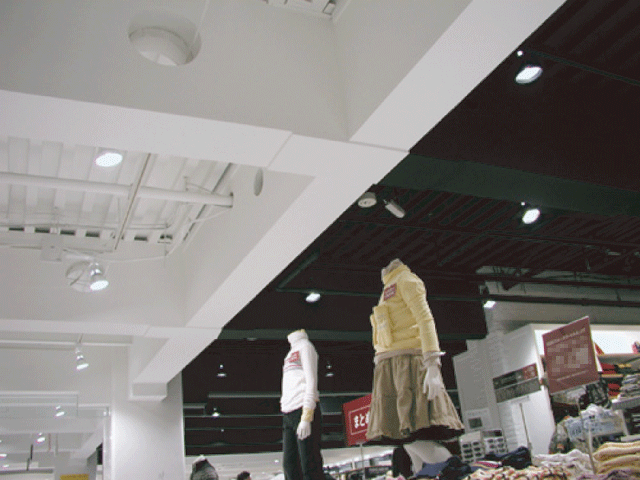

Beautiful store

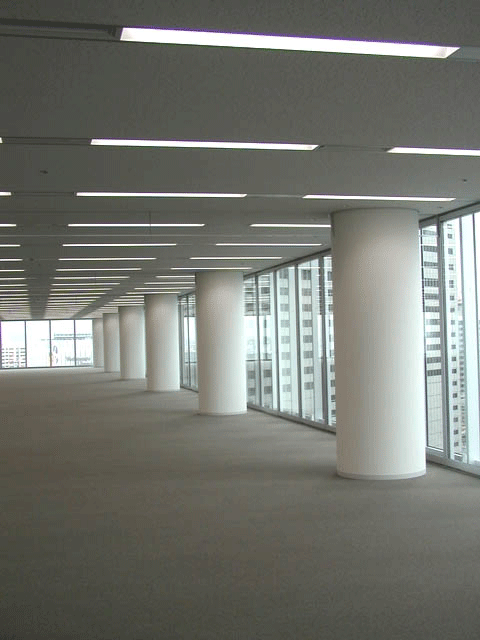

Office

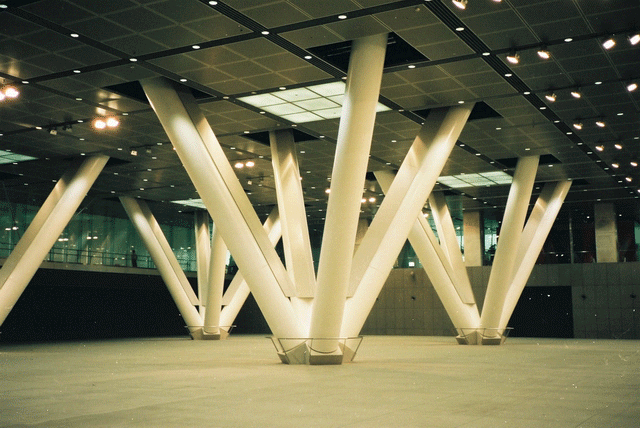

As designed columns in a large space

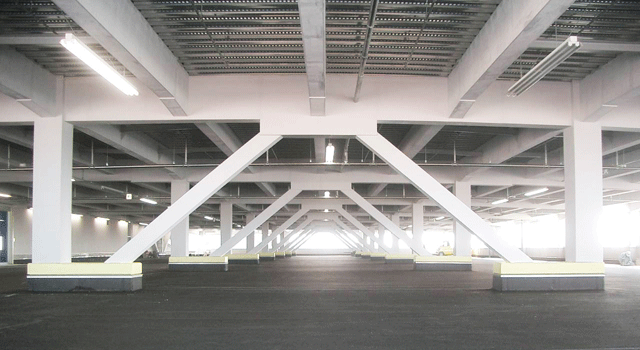

Parking area
Products
Major customers
2019 |
BUNKYO GARDEN (Tokyo, Japan) |
2018 |
TOKYO PORTCITY TAKESHIBA (Tokyo, Japan) |
2017 |
NAKANOSHIMA FESTIVAL TOWER WEST (Osaka, Japan) |
2016 |
LOTTE WORLD TOWER (Koria, Seoul) |
2015 |
DAINAGOYA BUILDING (Aichi, Japan) |
2014 |
ABENO HARUKAS (Osaka, Japan) |
2013 |
YOKOHAMA i-MARK PLACE (Kanagawa, Japan) |
2012 |
JP TOWER (Tokyo, Japan) |
2011 |
Shibuya Hikarie (Tokyo, Japan) |
2010 |
Tokyo Sky Tree (Tokyo, Japan) |
2009 |
Tokyo International Airport (Tokyo, Japan) |
2008 |
Akasaka Biz Tower (Tokyo, Japan) |
2008 |
South Port Station building of bullet train in Taiwan |
2007 |
Tokyo Midtown (Tokyo, Japan) |
2007 |
Tokyo International Airport (Tokyo, Japan) |
2006 |
Midland Square (Aichi, Japan) |
2005 |
Central Japan International Airport (Aichi, Japan) |
Sizes and physical property of representative calcium silicate slim-type fire-resistant cladding materials (high density) (*other products are also available)
Physical property |
Unit |
Physical properties |
Standards |
Apparent Density |
g/㎝3 |
0.3 or above |
JIS A 5430 |
Flexural Strength |
N/㎜2 |
2.0 or above |
JIS A 5430 |
