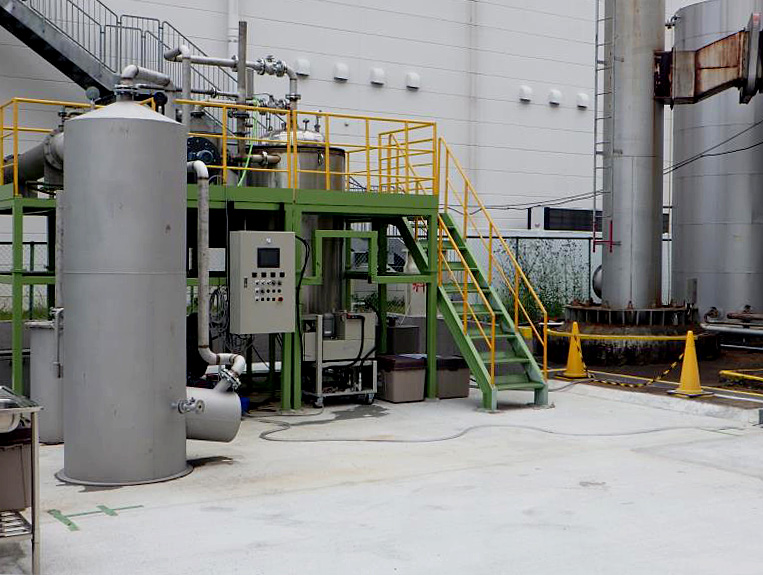

①Decomposition tank

Decomposition and gasification of resins by heating

②Catalytic tank

Neutralisation of hydrogen halide by catalyst (quicklime)

③Gas cooling tank

Dissolution of decomposition gases by cooling oil

④Cooling condenser

water-cooled system for circulating oil

⑤Hot water tank

⑥Oil circulation tank

Circulate Gas-Dissolved Oil

⑦First oil recovery tank

Water cooling + oil-water separation of gas residues in gas cooling towers

⑧Second oil recovery tank

⑨Oil burner

Heating the decomposition tank

⑩Fuel tank

Diesel oil as burner fuel

⑪Oil circulation pump

Driving force of oil circulation

⑫Water circulation pump

Driving force of the water cycle

⑬Electric fan

Drawing exhaust gas heat to the periphery of the catalytic tank and suction of exhaust gas from the periphery of the catalytic tank

⑭Electric fan

For emergency cooling of decomposition tanks

⑮ Cooling tower

Circulating water cooling to cooling condenser

⑯Centrifugal decomposition unit

Remove unwanted materials from the oil circulation tank.
